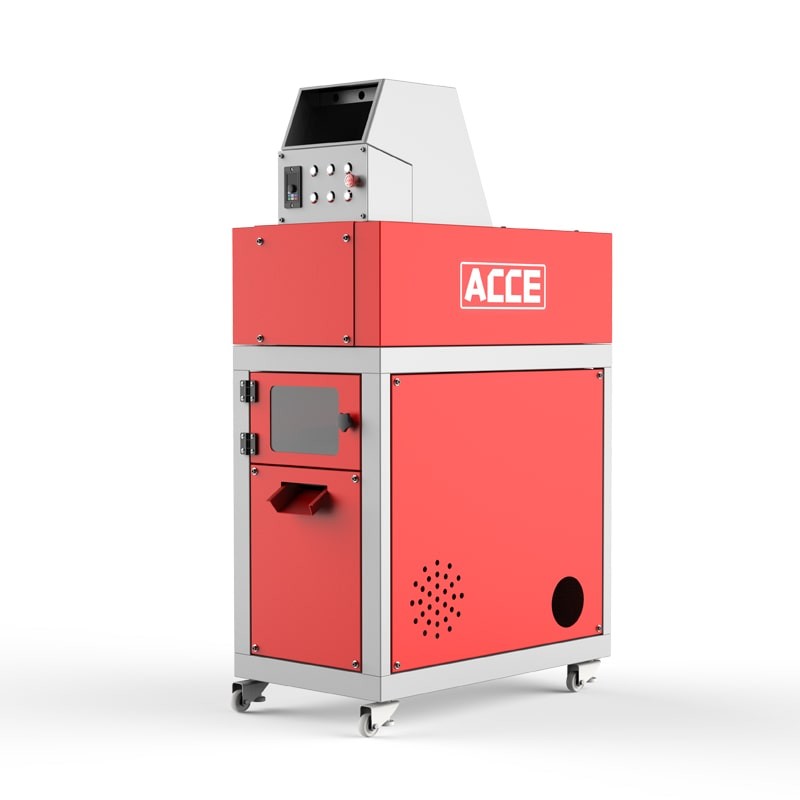

V-C03 Copper Wire Chopper Granulator

With the V-C03 copper wire chopper granulator, cost-effectively separate valuable copper from the insulation jacket. ACCE MACHINERY can help to understand whether this is the best wire granulator for recycling goals.

The V-C03 copper wire chopper granulator is for recycling pure copper from scrap cable wires. The recycling rate is as high as 99.95%, and it has a wind dust collection system to reduce dust and maintenance. It is small and extremely efficient. The equipment can process 110-176 lb cable wires per hour.

The types of scrap it can process include:
● Wire harnesses
● Automotive wires
● Industrial cables
● Household wires
● Electrical wires
● Square wires
● And more
Easy to move with universal wheels. Easy to operate by one person. More suitable for small metal recycling yards, factory or home use.

Services We Also Provide
OEM ODM custom
1-year warranty
Machine Test video before delivery
Installation and operation training
Lifetime After-sales

Technical Specifications:

Model	V-C03	V-C03
Range	0.1-30 mm	0~1.19 in
Weight	350 kg	772 lb
Dimensions	L1020xW630xH1700 mm	40.2x24.8x66.9 in
Power	5.2 kw	7 hp
Processing Capacity	50-80 kg/h	110-176 lb/h

Includes:

- 4kw Granulation crusher
- Air flowing vibration separator
- Dust Collector
- Air system (air blower + air suction)
- Electric carbinet
- 1 Set blades -- (SKD-11 3pcs rotary blades + 2pcs fixed blades)
- 3 Crusher sieves (2.5mm+3mm+4mm)
- 2 Separators sieves (200mesh+250mesh)
- 1 SET Tool Box
Free replacement parts
One Year warranty

We Recommended Adding Optional Accessories
- Pre-shredder
- Small vibration table
- Conveyor belt with magnetic separation device
These accessory to efficiently and accurately process a large number of fine and thick wires at the same time.

V-EB400 Pre-shredder Specifications
● Power: 5.4hp 60hz 3phase
● Dimensions: 1160x600x1450 mm
● Weight: 1102 lb

How Does The Copper Wire Chopper Granulator Work?
1. C03 separates copper wire from plastic coating.
2. Then cuts cables and wires into granules.
3. Copper particles are directed out of the insulation layer by an airflow gravity sorting system (heavier copper, lighter plastic). Copper particles are fed into separate boxes.
4. Airflow sorted copper is 99.9% pure.
5. The whole process is relatively quiet because we partially soundproof the components.
6. Self-cleaning dust collection system reduces maintenance time and eliminates dust

To learn more about the C03 and our full range of scrap metal recycling equipment, contact the experts at ACCE ! We will discuss and recommend the right equipment and accessories.
