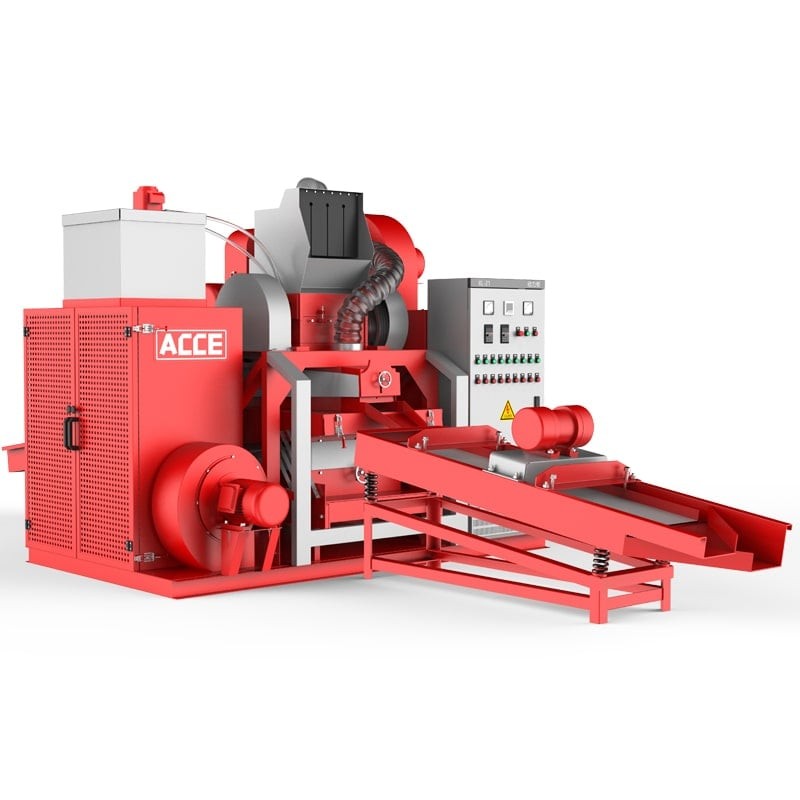

V-C10/C20 copper wire granulator

With the V-C10/C20 copper wire granulator, cost-effectively separate valuable copper from the insulation jacket.

The V-C10/C20 copper wire granulator is specially designed for recovering copper from scrap cable wire. The recycling rate is up to 99.95%, also featuring a self-cleaning mode to reduce maintenance and remove dust. The equipment can process 220-441 lb cable wires per hour.

The types of scrap it can process include:
● Wire harnesses
● Automotive wires
● Industrial cables
● Household wires
● And more
which is more suitable for recycling scrapyards, factory and metal company.

Services We Also Provide
OEM ODM custom
Provide test video before delivery
Video guided installation
Lifetime After-sales
1-year warranty provided
Installation and operation training.

Technical Specifications:

Model	V-C10	V-C10
Range	0.1-30 mm	0~1.19 in
Power	20.6 kw	27.6 hp
Dimensions	280016002000 mm	110.36378.7 in
Process capacity	100 kg/h	220 lb/h
Weight	1300 kg	2866 lb

Model	V-C20	V-C20
Range	0.1-30 mm	0~1.19 in
Power	23.44 kw	31.43 hp
Dimensions	280022002230 mm	110.386.687.8 in
Process capacity	200 kg/h	441 lb/h
Weight	1800 kg	3968 lb

Includes:
- 11kw Granulation crusher
- Air flowing vibration separator
- Dust Collector
- 4.5kw Air system (air blower + air suction)
- Electric carbinet
- 2 Small vibration tables
- 1 Set blades
- Crusher sieves
- Separators sieves (200mesh+250mesh)
- Small vibrating sieves
- 1 Set tool box
Free replacement parts

We Recommend Adding Optional Accessories
- Pre-shredder
- Conveyor belt with magnetic separation device
These accessory efficiently and accurately process a large number of fine and thick wires at the same time.

V-EB400 Pre-shredder Specifications
● Power: 5.4hp 60hz 3phase
● Dimensions: 1160x600x1450 mm
● Weight: 1102 lb

How Does The Wire Granulator Work?
1. C10/C20 separates copper wire from plastic coating.
2. Then cuts cables and wires into granules.
3. Copper particles are directed out of the insulation layer by an airflow gravity sorting system (heavier copper, lighter plastic). Copper particles are fed into separate boxes.
4. Airflow sorted copper is 99.9% pure.
5. The whole process is relatively quiet because we partially soundproof the components.
6. Self-cleaning dust collection system reduces maintenance time and eliminates dust

To learn more about the C10/C20 and our full range of scrap metal recycling equipment, contact the experts at ACCE !
We will discuss and recommend the right equipment and accessories.
