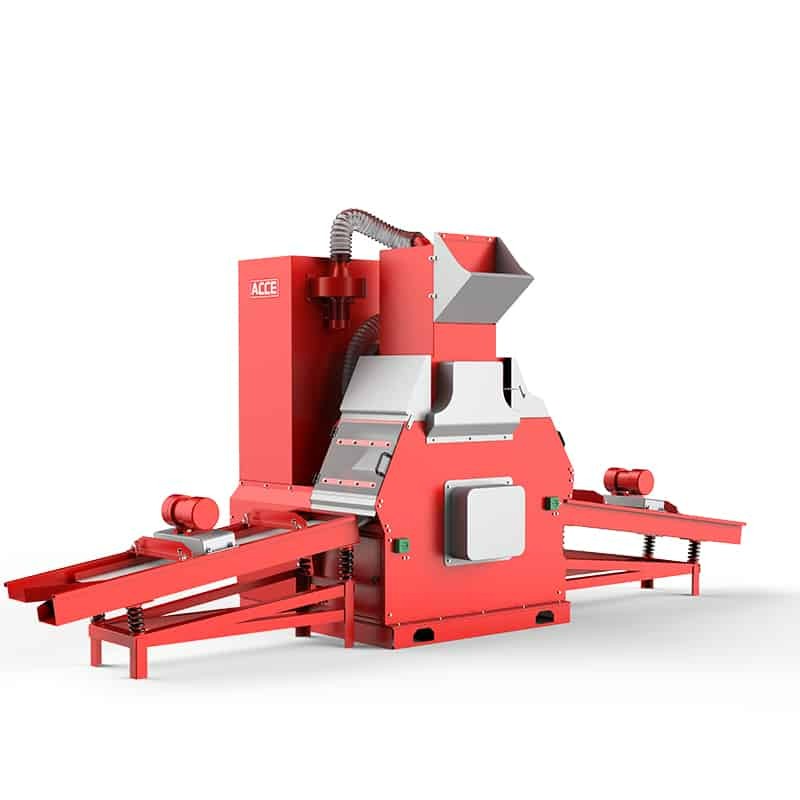

With the V-S10 copper wire chopping granulator machine, cost-effectively separate valuable copper from the insulation jacket. ACCE can help to understand if a Copper Wire Chopper is right for recycling goals.
The V-S10 copper wire chopper Granulator machine is specially designed for recovering pure copper from scrap cable wire. The recycling rate is up to 99.95%, also featuring a self-cleaning mode to reduce maintenance and remove dust. The equipment can process 220-331 lb cable wires per hour.
The types of scrap it can process include: ● Wire harnesses ● Automotive wires ● Industrial cables ● Household wires ● And more Easy to operate by one person. More suitable for metal recycling scrapyards and factory etc.
Services We Also Provide OEM ODM custom 1-year warranty Machine test video before delivery Installation and operation training. Lifetime After-sales
Technical Specifications:
Model
V-S10
V-S10
Range
0.1-30 mm
0~1.19 in
Weight
1066 kg
2350 lb
Dimensions
L2040*W1650*H2220 mm
80.3*65*87.4 in
Power
17.8 kw
23.9 hp
Processing Capacity
100~150 kg/h
220-331 lb/h
Includes: - 18.5kw Granulation crusher - Air flowing vibration separator - Dust Collector - 4.5kw Air system (air blower + air suction) - Electric carbinet - 2 Small vibration tables - 1 Set blades (SKD-11 10pcs rotary blades + 2pcs fixed blades) - 3 Crusher sieves - 2 Separators sieves (200mesh+250mesh) - 3 Small vibrating sieves - 1 Set tool box Free replacement parts
Copper Cable Recycling Solutions: Choosing the Right Copper Granulator * Copper granulators are ideal for processing mixed, tangled, or fine scrap wires that are difficult to handle with manual wire stripping machines.
* For heavy or moderately thick armored cables, a system equipped with a pre-shredder is recommended to prevent blade jamming.
* For automotive wiring harnesses, a talc powder injection system is recommended to prevent issues such as tape tangling and material sticking.
* For cables with plugs, ensure the system includes a magnetic separator to remove ferrous components.
* For extremely fine capillary wires, an electrostatic separator is recommended to prevent fine copper strands from being blown away along with the plastic.
* To ensure optimal separation results, look for equipment featuring adjustable airflow, a reliable vibrating table, a dust collection system, and durable blades.
How Does The copper wire chopper granulator Work? 1. S10 separates copper wire from plastic coating. 2. Then cuts cables and wires into granules. 3. Copper particles are directed out of the insulation layer by an airflow gravity sorting system (heavier copper, lighter plastic). Copper particles are fed into separate boxes. 4. Airflow sorted copper is 99.9% pure. 5. The whole process is relatively quiet because we partially soundproof the components. 6. Self-cleaning dust collection system reduces maintenance time and eliminates dust
To avoid disrupting your production flow or wasting energy, please let me know:
What type of wire do you primarily process? Is it household Romex cable, automotive wiring harnesses, or thick industrial cable?
What is your daily processing volume (in pounds or kilograms)?
I can help you determine the ideal specifications and features for your copper granulator.
