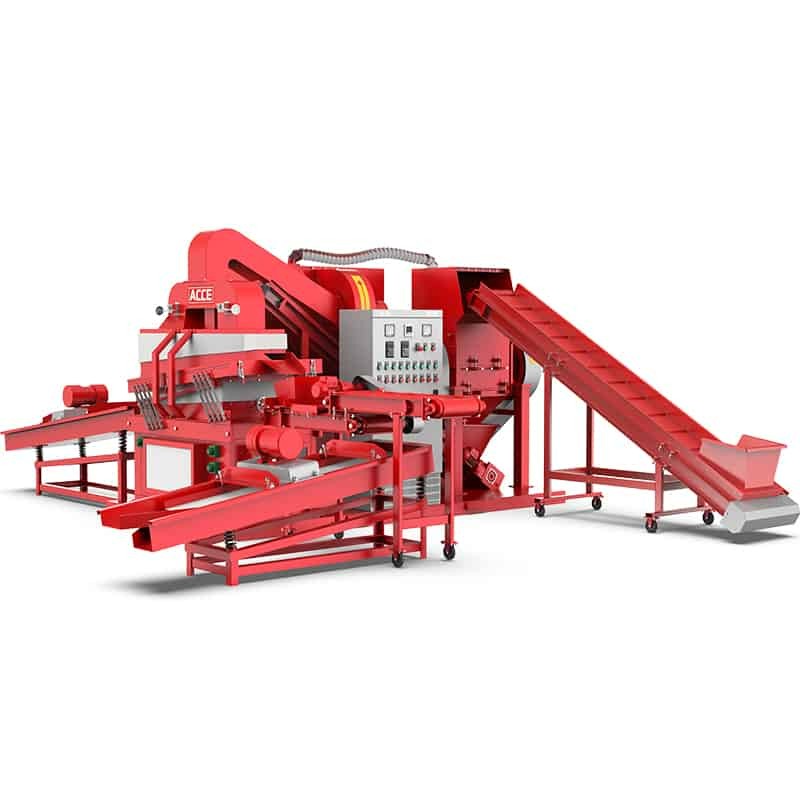

V-S30 Copper Wire Chopper Granulator

With the V-S30 cable wire chopper granulator, cost-effectively separate valuable copper from the insulation jacket.

The V-S30 copper wire chopper granulator is specially designed for recovering pure copper from scrap cable wire. The recycling rate is up to 99.95%, also featuring a self-cleaning mode to reduce maintenance and remove dust. The equipment can process 882-1102 lb cable wires per hour.

The types of scrap it can process include:
● Wire harnesses
● Automotive wires
● Industrial cables
● Household wires
● And more
which is more suitable for recycling scrap yards and factory.

Services We Also Provide
OEM ODM custom
1-year warranty provided
Machine test video before delivery
Video guided installation
Lifetime After-sales
Installation and operation training.

Technical Specifications:

Model	V-S30	V-S30
Range	0.1-30 mm	0~1.19 in
Weight	3200 kg	7055 lb
Mea	350018002400 mm	137.870.894.5 in
Power	49.1 kw	65.8 hp
Processing Capacity	400-500 kg/h	882-1102 lb/h

Includes:
- 37kw Granulation crusher
- Air flowing vibration separator
- Dust Collector
- 8kw Air system (air blower + air suction)
- Electric carbinet
- Inner conveyor belt
- 2 Small vibration tables
- 1 Set blades
- Crusher sieves
- Separators sieves (200mesh+250mesh)
- Small vibrating sieves
- 1 Set tool box
Free replacement parts

We Recommend Adding Optional Accessories
- Pre-shredder device
- Conveyor belt with magnetic separation device
These accessory efficiently and accurately process a large number of fine and thick wires at the same time.

Specifications:
V-EB400 Pre-shredder Specifications
● Power: 5.4hp 60hz 3phase
● Dimensions: 1160x600x1450 mm
● Weight: 1102 lb

How Does The Copper Wire Chopper Granulator Work?
1. S30 separates copper wire from plastic coating.
2. Then cuts cables and wires into granules.
3. Copper particles are directed out of the insulation layer by an airflow gravity sorting system (heavier copper, lighter plastic). Copper particles are fed into separate boxes.
4. Airflow sorted copper is 99.9% pure.
5. The whole process is relatively quiet because we partially soundproof the components.
6. Self-cleaning dust collection system reduces maintenance time and eliminates dust

To learn more about the S30 and our full range of scrap metal recycling equipment, contact the experts at ACCE !
We will discuss and recommend the right equipment and accessories.
