V-S35 copper wire recycling granulator machine - ACCE
Home      Products     Copper Wire Granulator       V-S35 copper wire recycling granulator m
  • V-S35 copper wire recycling granulator machine

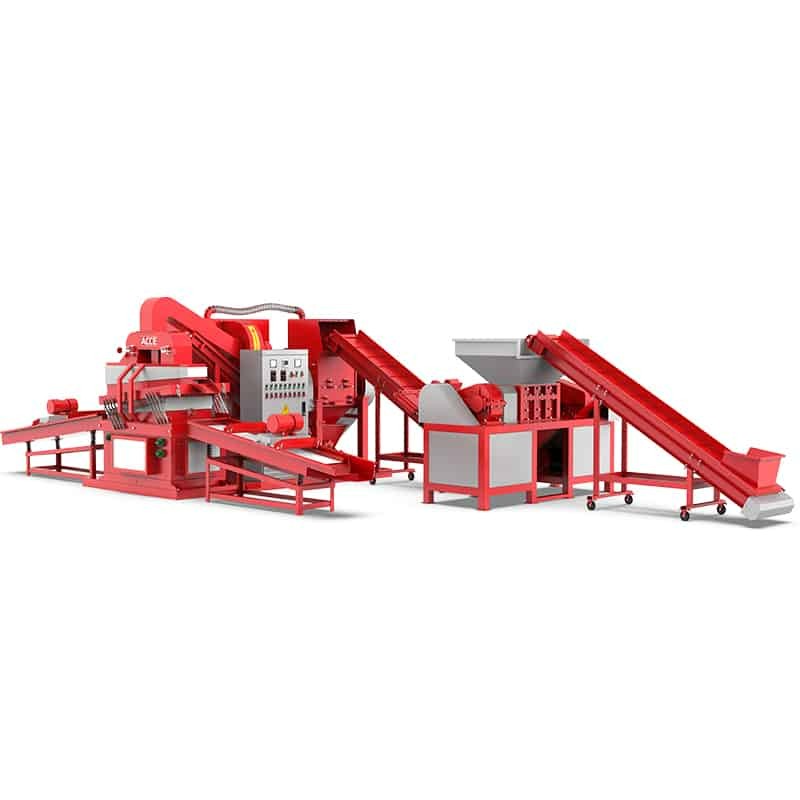

V-S35 copper wire recycling granulator machine


Description
The V-S35 copper wire recycling granulator machine is specially designed for recovering copper from scrap cable wire. The equipment can process 1323-1764 lb cable wires per hour. The power supply can be three-phase, which is more suitable for recycling yards.

Includes:
- 37kw Granulation crusher
- Air flowing vibration separator
- Dust Collector
- 8kw Air system (air blower + air suction)
- Electric carbinet
- Inner conveyor belt
- Feeding conveyor belt
- Pre-shredder
- 2 Small vibration tables
- 1 Set blades
- Crusher sieves
- Separators sieves (200mesh+250mesh)
- Small vibrating sieves
- 1 Set tool box
Free replacement parts
One Year warranty

With the V-S35 copper wire recycling granulator machine, you can cost-effectively separate valuable copper from the insulation jacket. V-S35 can accurately process a variety of waste cables and wires. The recycling rate is up to 99.95%, which is higher than almost any other metal recycling equipment.
The types of scrap it can process include:
● Wire harnesses
● Automotive wires
● Industrial cables
● Household wires
● And more

How Does The Wire Granulator Work?
How does the machine separate metals efficiently and accurately. First, the scrap is crushed into particles, and then the valuable metal components are cleanly separated from plastics or other materials of different weights through an airflow process.
1. The pre-shredder pre-shreds the scrap wires to make the wire size about 1~2 inches.
2. The wire granulator crushes the 1~2 inch wires into smaller uniform granules.
3. Finally, the airflow sorting separates the copper granules and plastic granules according to weight, and guides the copper granules and plastics to different discharge ports.

V-S35 Copper Wire Recycling Granulator Machine Specifications
● Dimensions: 5000x6500x3000 mm
● Weight: 11023 lb
● Motor: 100.6 HP
● Processing Capacity: 1323-1764 lb/h

Unit Conversion Technical Specifications:

Model
V-S35
V-S35
Range
0.1-30 mm
0~1.19 in
Weight
5000 kg
11023 lb
Mea
5000*6500*3000 mm
196.9*255.9*118.1 in
Power
75 kw
100.6 hp
Processing Capacity
600-800 kg/h
1323-1764 lb/h


Our dedicated team is dedicated to helping you find the perfect solution for your wire recycling needs based on your space, material, budget and logistics requirements.

Contact us to help you recycle more efficiently and make more money for you!
