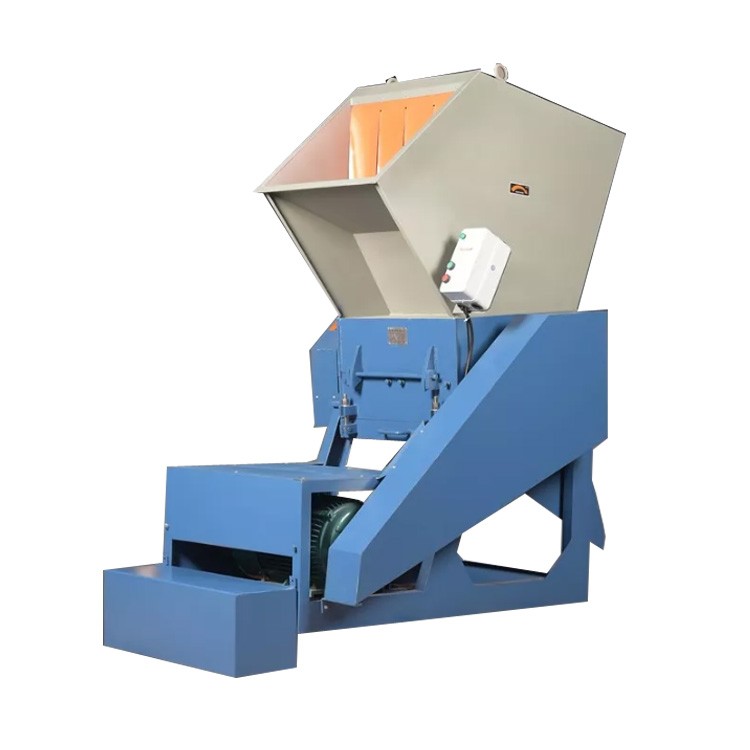

Big plastic crusher


Plastic products often end up as non-biodegradable waste when discarded. Plastic crushers provide an environmentally friendly solution by recycling these materials.

Plastic shredders flexibly process different types of plastic into recyclable fragments. They can effectively shred thermoplastics such as PE, PP, PVC, PS, PU and PET, such as bottle caps, pet bottles, EPS foam, rigid plastic pipes. These waste plastics can be effectively reused.

Processing capacity 300-1200kg/h.

Features:
● No need for manual cutting, it can be broken directly.
● High hardness and wear-resistant blade, reusable.
● Easy to operate by one person.
● Environmental protection.

Services:
1.Strong R&D capabilities
● Controllable delivery time
● OEM ODM custom
● Stable quality
2. Lifetime After-sales
● Video guided installation
● Free replacement parts
● One Year warranty

Technical Specifications

Model V-B500 V-B600 V-B650 V-B800 V-B1000
Crusher Width (mm) 500 600 650 800 1000
Crusher working diameter (mm) 330 380 500 420 420
Rotary blades quantity (PC) 6 6 6 6 6
Fixed blades quantity (PC) 4 4 4 4 4
Feeding hole height (mm) 1320 1450 1780 1700 1700
Feeding hole size (mm) 500 x 430 600 x 450 650x530 800x480 1000x480
Main axis diameter (mm) 90 90 110 110 110
Main axis rotary speed (r/min) 500 500 495 480 480
Power (kw) 11 15 18.5 22 30
Crusher sieve hole diameter (mm) 14 15 14 14 14
Crushing process capacity (kg/h) 300~500 400~650 450~800 550~1000 700~1200
Measurement (mm) 1370x950x1720 1520x1050x1750 1750x1100x2300 1700x1350x2200 1750x1600x2200
Weight (kg) 600 780 1120 1400 1700


Our dedicated team is dedicated to helping you find the perfect solution for your recycling needs based on your space, material, budget and logistics requirements.

Contact us to help you recycle more efficiently and make more money for you!
