V-C01-C Copper Wire Chopper Granulator

US local stock,Fastest delivery in 5 days

With a ACCE cable granulator, cost-effectively separate precious metals like aluminum and copper from insulation materials!

ACCE can help to understand if a wire granulator is right for recycling goals.

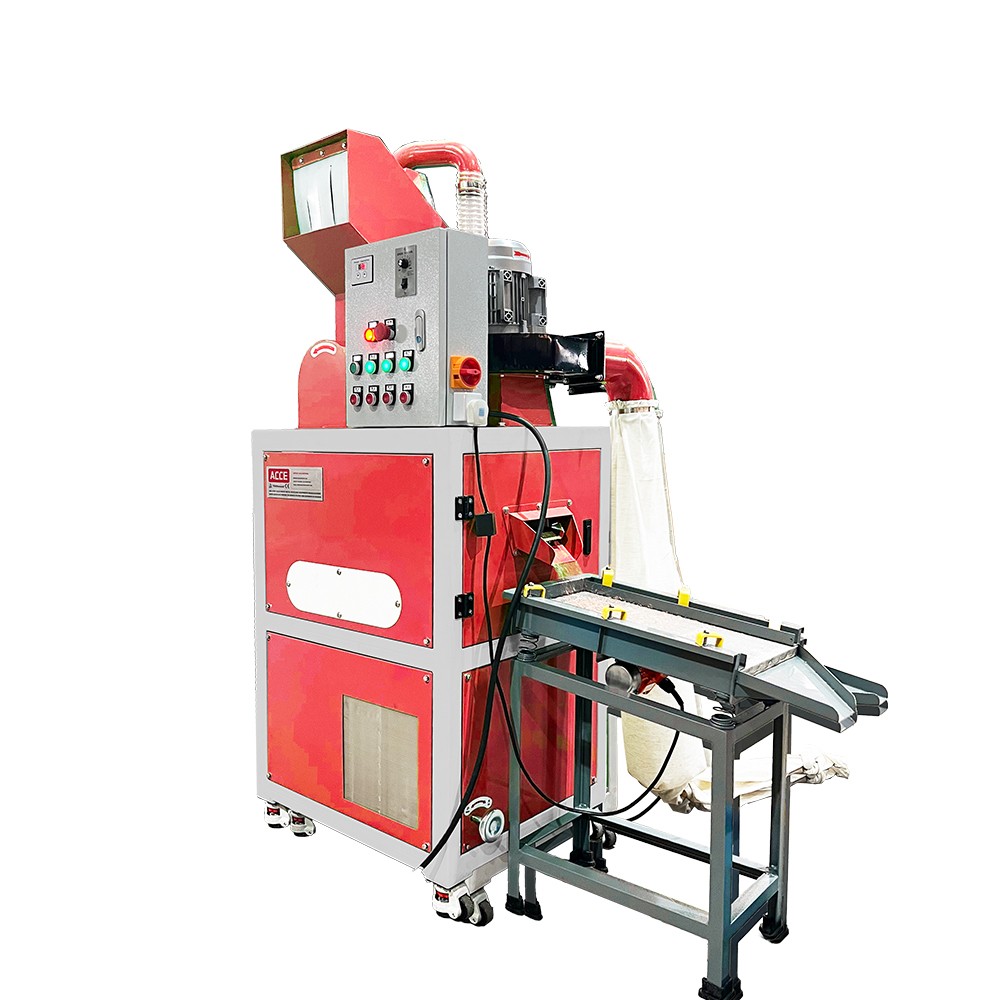

The C01-C is a compact copper granulator specifically designed to recover copper from cables while consuming minimal energy. It can separate two different densities of wire with 99.9% accuracy and can process more scrap wire and wire at a higher rate than almost any other equipment, also featuring a self-cleaning mode to reduce maintenance and remove dust.
The C01-C is a professional helper for homes, small factories and small scrap plants, processing up to 66-110 lb of scrap wire and wire per hour.

The types of scrap it can process include:
● Wire harnesses
● Automotive wires
● Industrial cables
● Household wires
● And more

Service Support:
● 1-year warranty provided
● Lifetime after-sales
● Low maintenance
● Machine testing provided
● Installation and operation training.

C01-C 240v/480v 3ph/Single phase Wire Granulator:

Model	V-C01-C	V-C01-C
Range	≤22mm	0~0.98 in
Weight	340 kg	749 lb
Dimensions	L900W720H1785 mm	35.428.370.27 in
Power	Three phases 5.3 kw/Single phase 4.3	Three phases 7.1/Single phase 5.36 hp
Processing Capacity	30-50 kg/h	66-110 lb/h

Includes:
- Granulation crusher
- Air flowing vibration separator
- Dust Collector
- Air system (air blower + air suction)
- Electric carbinet
- 1 Set blades
- Crusher sieves
- Separators sieves
- 1 SET Tool Box

Consider optional accessories:
We recommend adding accessories
-Pre-crushing device
-Conveyor belt with magnetic separation device
-Small vibrating screen
This accessory process a large amount of fine and thick wires at the same time efficiently and accurately.
Specifications:
V-EB300 Pre-shredder Specifications
● Power: 4hp 3phase/1Phase -Plug
● Dimensions: 1081x570x1329 mm
● Weight: 881 lb

How does the C01-C Copper Wire Granulator work?
The C01-C separates copper wire from the plastic coating. The cables and wires are then cut into pellets. The copper pellets are directed away from the insulation (copper is heavier, plastic is lighter) by an airflow gravity sorting system. The copper pellets are fed into separate boxes. The airflow sorting produces a 99.9% purity copper.
The entire process is relatively quiet because we partially soundproof the components.
The self-cleaning dust collection system reduces maintenance time and eliminates dust.

To learn more about the C01-C and our full range of scrap metal recycling equipment, contact the experts at ACCE!
We will discuss and recommend the right equipment and accessories.
