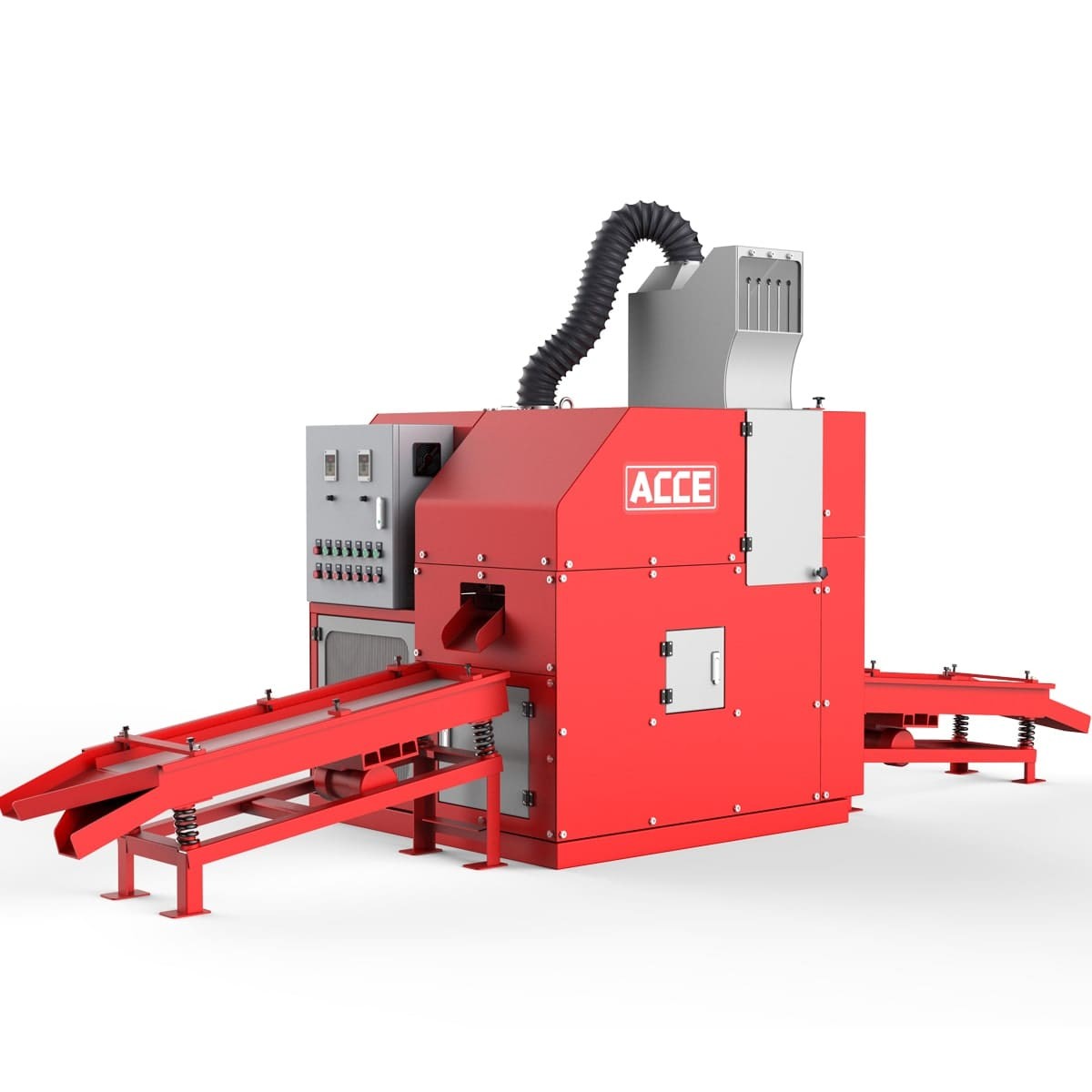

With the V-C06 copper wire chopper granulator machine, cost-effectively separate valuable copper from the insulation jacket.
The V-C06 copper wire chopper granulator machine is small wire granulator, specially designed for recovering copper from scrap cable wire. The recycling rate is up to 99.95%, also featuring a self-cleaning mode to reduce maintenance and remove dust. The equipment can process 176-265 lb cable wires per hour.
The types of scrap it can process include: ● Wire harnesses ● Automotive wires ● Industrial cables ● Household wires ● And more Suitable for small recycling scrapyards, homes and factories.
Services We Also Provide OEM ODM custom Machine test video before delivery Video guided installation Lifetime After-sales 1-year warranty provided Installation and operation training.
Technical Specifications:
Model
V-C06
V-C06
Range
0.1-30 mm
0~1.19 in
Weight
1200 kg
2646 lb
Dimensions
L1850*W1650*H2400 mm
72.8*65*88.2 in
Power
12.2 kw
17.4 hp
Processing Capacity
80-120 kg/h
176-265 lb/h
Includes: - 7.5kw Granulation crusher - Air flowing vibration separator - Dust Collector - Air system (air blower + air suction) - Electric carbinet - Small vibration tables - 1 Set blades (5pcs rotary blades + 2pcs fixed blades) - 3 Crusher sieves (2.5mm+3mm+4mm) - 2 Separators sieves (200mesh+250mesh) - 1 Set tool box Free replacement parts
Copper Cable Recycling Solutions: Choosing the Right Copper Granulator * Copper granulators are ideal for processing mixed, tangled, or fine scrap wires that are difficult to handle with manual wire stripping machines.
* For heavy or moderately thick armored cables, a system equipped with a pre-shredder is recommended to prevent blade jamming.
* For automotive wiring harnesses, a talc powder injection system is recommended to prevent issues such as tape tangling and material sticking.
* For cables with plugs, ensure the system includes a magnetic separator to remove ferrous components.
* For extremely fine capillary wires, an electrostatic separator is recommended to prevent fine copper strands from being blown away along with the plastic.
* To ensure optimal separation results, look for equipment featuring adjustable airflow, a reliable vibrating table, a dust collection system, and durable blades.
How Does The Copper Wire chopper Granulator Work? 1. C06 separates copper wire from plastic coating. 2. Then cuts cables and wires into granules. 3. Copper particles are directed out of the insulation layer by an airflow gravity sorting system (heavier copper, lighter plastic). Copper particles are fed into separate boxes. 4. Airflow sorted copper is 99.9% pure. 5. The whole process is relatively quiet because we partially soundproof the components. 6. Self-cleaning dust collection system reduces maintenance time and eliminates dust
To avoid disrupting your production flow or wasting energy, please let me know:
What type of wire do you primarily process? Is it household Romex cable, automotive wiring harnesses, or thick industrial cable?
What is your daily processing volume (in pounds or kilograms)?
I can help you determine the ideal specifications and features for your copper granulator.
