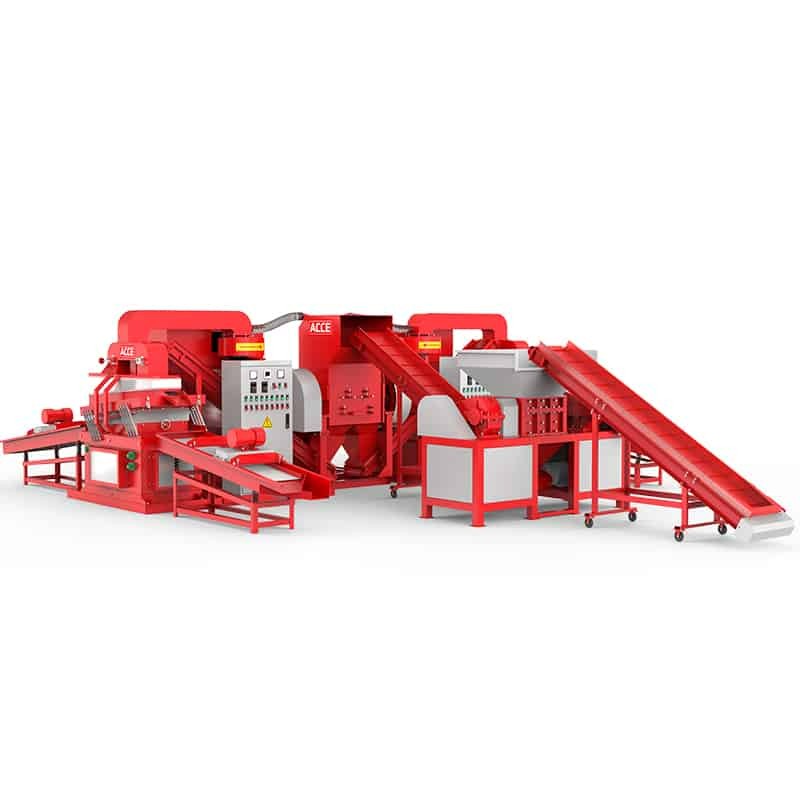

V-S55 copper granulator machine

With the V-S55 copper wire granulator machine, cost-effectively separate valuable copper from the insulation jacket.

The V-S55 copper wire granulator machine is specially designed for recovering copper from scrap cable wire. The recycling rate is up to 99.95%, also featuring a self-cleaning mode to reduce maintenance and remove dust. The equipment can process 2646-3968 lb cable wires per hour.

The types of scrap it can process include:
● Wire harnesses
● Automotive wires
● Industrial cables
● Household wires
● And more
which is more suitable for recycling scrapyards, factory and metal company.

Services We Also Provide
OEM ODM custom
Machine test video before delivery
Video guided installation
Lifetime After-sales
1-year warranty provided
Installation and operation training.

Technical Specifications:

Model	V-S55	V-S55
Range	0.1-30 mm	0~1.19 in
Weight	8500 kg	18739 lb
Mea	1200043003000 mm	472.4169.3118.1 in
Power	94.8 kw	127.1 hp
Processing Capacity	1200-1800 kg/h	2646-3968 lb/h

Includes:
- Granulation crusher
- 2 Air flowing vibration separator
- 2 Dust Collector
- 2 Air system (air blower + air suction)
- 2 Electric carbinet
- 2 Water tank
- 2 Inner conveyor belt
- 2 Feeding conveyor
- Conveyor magnetic device
- Pre-shredder
- 4 Small vibration tables
- 1 Set blades
- Crusher sieves
- Separators sieves (200mesh+250mesh)
- Small vibrating sieves
- 1 Set tool box
Free replacement parts

How Does The Wire Granulator Work?
1. S55 separates copper wire from plastic coating.
2. Then cuts cables and wires into granules.
3. Copper particles are directed out of the insulation layer by an airflow gravity sorting system (heavier copper, lighter plastic). Copper particles are fed into separate boxes.
4. Airflow sorted copper is 99.9% pure.
5. The whole process is relatively quiet because we partially soundproof the components.
6. Self-cleaning dust collection system reduces maintenance time and eliminates dust

To learn more about the S55 and our full range of scrap metal recycling equipment, contact the experts at ACCE !
We will discuss and recommend the right equipment and accessories.
