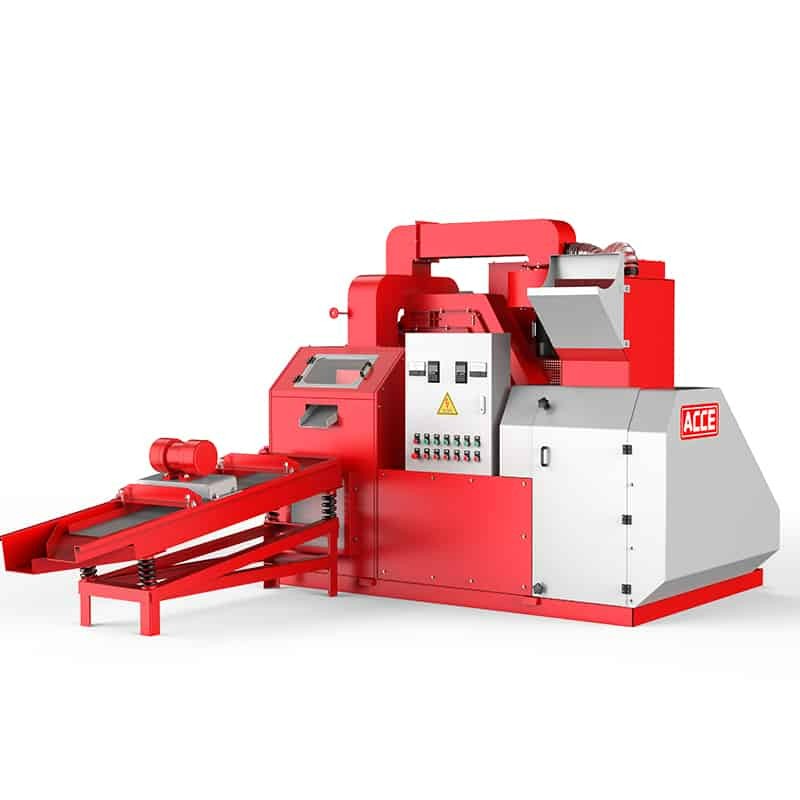

V-S20 Copper Wire Chopper Granulator

With the V-S20 cable wire chopper granulator, cost-effectively separate valuable copper from the insulation jacket.

The V-S20 copper wire chopper granulator is specially designed for recovering pure copper from scrap cable wire. The recycling rate is up to 99.95%, also featuring a self-cleaning mode to reduce maintenance and remove dust. The equipment can process 441-661 lb cable wires per hour.

The types of scrap it can process include:
● Wire harnesses
● Automotive wires
● Industrial cables
● Household wires
● And more
which is more suitable for recycling scrapyards and factory.

Services We Also Provide
OEM ODM custom
Machine test video before delivery
Video guided installation
Lifetime After-sales
1-year warranty provided
Installation and operation training.

Technical Specifications:

Model	V-S20	V-S20
Range	0.1-30 mm	0~1.19 in
Weight	2600 kg	5732 lb
Dimensions	290020202200 mm	114.279.586.6 in
Power	23.39 kw	31.37 hp
Processing Capacity	200-300 kg/h	441-661 lb/h

Includes:
- 15kw Granulation crusher
- Air flowing vibration separator
- 0.75kw Inner conveyor belt
- Dust Collector
- Air system (air blower + air suction)
- Electric carbinet
- 2 Small vibration tables
- 1 Set blades (SKD-11 10pcs rotary blades + 2pcs fixed blades)
- 3 Crusher sieves
- 2 Separators sieves (200mesh+250mesh)
- 3 Small vibrating sieves
- 1 Set tool box
Free replacement parts

We Recommend Adding Optional Accessories
- Pre-shredder
- Electrostatic separator
- Conveyor belt with magnetic separation device
These accessory efficiently and accurately process a large number of fine and thick wires at the same time.

V-EB400 Pre-shredder Specifications
● Power: 5.4hp 60hz 3phase
● Dimensions: 1160x600x1450 mm
● Weight: 1102 lb

How Does The Copper Wire Chopper Granulator Work?
1. S20 separates copper wire from plastic coating.
2. Then cuts cables and wires into granules.
3. Copper particles are directed out of the insulation layer by an airflow gravity sorting system (heavier copper, lighter plastic). Copper particles are fed into separate boxes.
4. Airflow sorted copper is 99.9% pure.
5. The whole process is relatively quiet because we partially soundproof the components.
6. Self-cleaning dust collection system reduces maintenance time and eliminates dust

To learn more about the S20 and our full range of scrap metal recycling equipment, contact the experts at ACCE !
We will discuss and recommend the right equipment and accessories.
