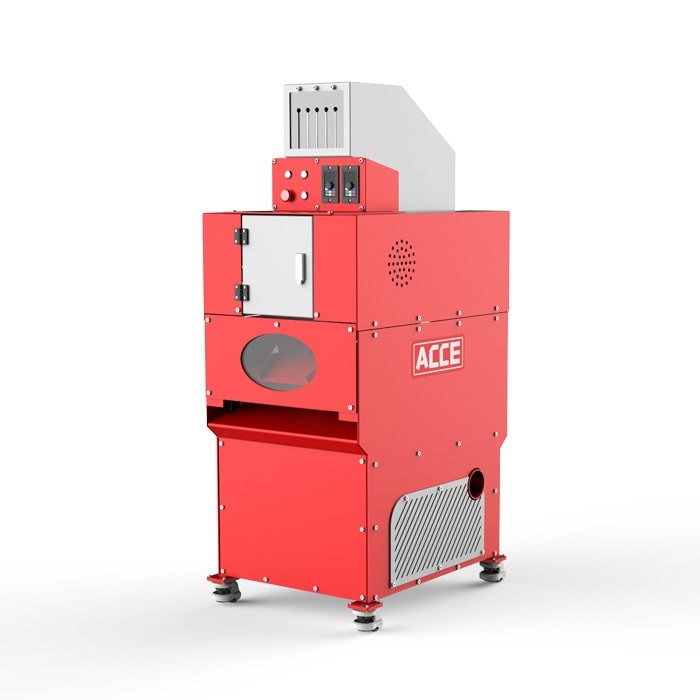

With the V-C02 copper granulator, cost-effectively separate valuable copper from the insulation jacket.
The V-C02 copper wire granulator machine is a mini wire granulator specially for recycling pure copper from scrap cable wires. The recycling rate is as high as 99.95%, And it has a wind dust collection system to reduce dust and maintenance. It is small and extremely efficient. The equipment can process 88.2-132.3 lb cable wires per hour.
The types of scrap it can process include: ● Wire harnesses ● Automotive wires ● Industrial cables ● Household wires ● And more Easy to move with universal wheels. Easy to operate by one person. More suitable for small recycling yards, factory or home use.
Services We Also Provide OEM ODM custom Machine test video before delivery Video guided installation Lifetime After-sales 1-year warranty provided Installation and operation training
Technical Specifications:
Model
V-C02
V-C02
Range
0.1-30 mm
0~1.19 in
Weight
310 kg
683 lb
Dimensions
H1730*L890*W740 mm
68.1*35*29.1 in
Power
4.2 kw
5.6 hp
Processing Capacity
40-60 kg/h
88.2-132.3 lb/h
Includes: - 3kw Granulation crusher - Air flowing vibration separator - Dust Collector - Air system (air blower + air suction) - Electric carbinet - 1 Set blades --- (SKD-11 3pcs rotary blades + 2pcs fixed blades) - 3 Crusher sieves (2.5mm+3mm+4mm) - 2 Separators sieves (200mesh+250mesh) - 1 SET Tool Box Free replacement parts
Copper Cable Recycling Solutions: Choosing the Right Copper Granulator * Copper granulators are ideal for processing mixed, tangled, or fine scrap wires that are difficult to handle with manual wire stripping machines.
* For heavy or moderately thick armored cables, a system equipped with a pre-shredder is recommended to prevent blade jamming.
* For automotive wiring harnesses, a talc powder injection system is recommended to prevent issues such as tape tangling and material sticking.
* For cables with plugs, ensure the system includes a magnetic separator to remove ferrous components.
* For extremely fine capillary wires, an electrostatic separator is recommended to prevent fine copper strands from being blown away along with the plastic.
* To ensure optimal separation results, look for equipment featuring adjustable airflow, a reliable vibrating table, a dust collection system, and durable blades.
How Does The Wire Granulator Work? 1. C02 separates copper wire from plastic coating. 2. Then cuts cables and wires into granules. 3. Copper particles are directed out of the insulation layer by an airflow gravity sorting system (heavier copper, lighter plastic). Copper particles are fed into separate boxes. 4. Airflow sorted copper is 99.9% pure. 5. The whole process is relatively quiet because we partially soundproof the components. 6. Self-cleaning dust collection system reduces maintenance time and eliminates dust
To avoid disrupting your production flow or wasting energy, please let me know:
What type of wire do you primarily process? Is it household Romex cable, automotive wiring harnesses, or thick industrial cable?
What is your daily processing volume (in pounds or kilograms)?
I can help you determine the ideal specifications and features for your copper granulator.
